Product Specifications
Design: Double Conversion On-Line Topology
Power Rating: 1050 kVA
Voltage: Input: 480V; Output: 480V
Design Features:
- True on-line double conversion
- Advanced 3-level IGBT technology
- Tablet or smart phone compatible
- 1.1:1 generator compatibility
- Advanced DSP applied ASIC
- Up to 97% efficient
- Parallel up to 8 units with CLC
- 3-year warranty (5 year optional)
- 65 or 100 kAIC options
- Front LCD display
- Low audible noise
- 480 VAC input & output
- 150% overload for 1 minute
- Low heat loss design
- 480 VDC nominal battery voltage
- +/- 2% transient response (100% step)
- <3% harmonic distortion at 100% load
- SNMP adapter available as option
- MODBUS (Serial) adapter optional
- Modbus TCP standard on all units

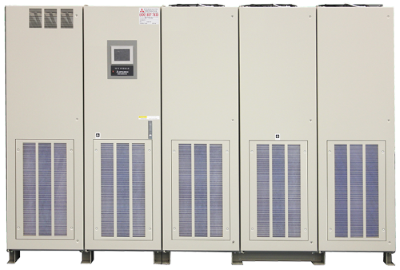

9900C UPS Modules
| kVA | KW | Input/Output Voltage |
Part Number | Dimensions (W x D x H) inches |
Total System Weight (lbs) |
|---|---|---|---|---|---|
| 1050 | 1000 | 480/480 | M9900C-A-1050-480-480 | 118.2 x 35.5 x 80.7 | 6,614 |
| 1050 | 1000 | 480/480 | M9900C-A-1050-480-480-65 | 118.2 x 35.5 x 80.7 | 6,614 |
| 1050 | 1000 | 480/480 | M9900C-A-1050-480-480-100 | 118.2 x 35.5 x 80.7 | 6,614 |
